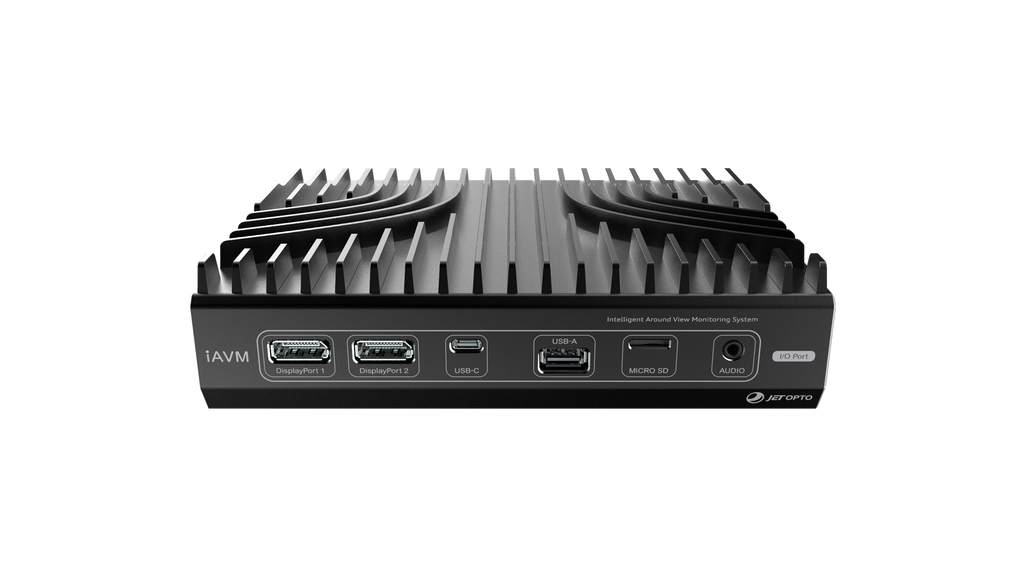

iAVM control unit, front view with camera and display ports
  • iAVM control unit, front view with camera and display ports

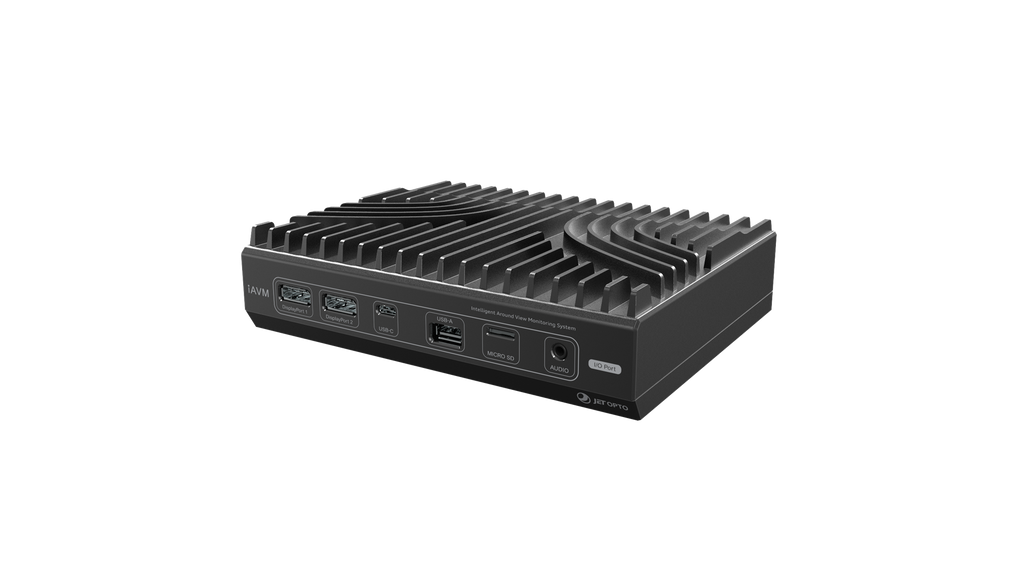

  • iAVM control unit, rear view with connector panel

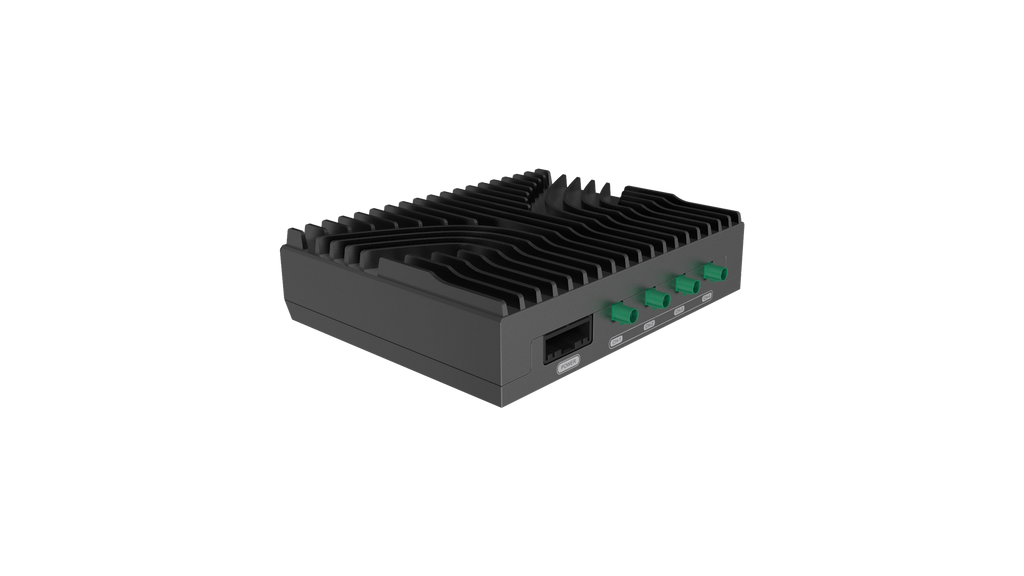

  • iAVM control unit, angled view

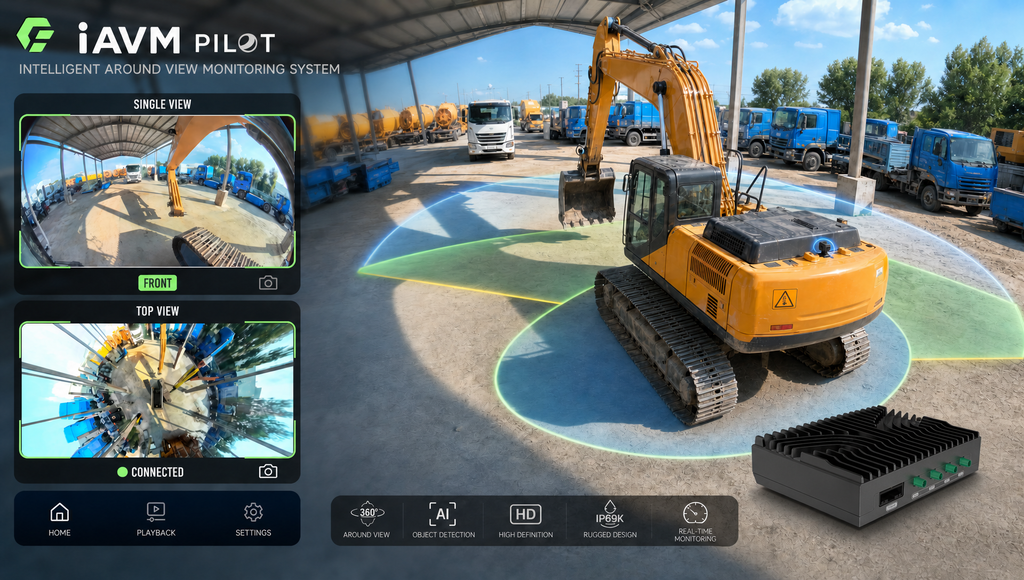

  • iAVM Pilot around-view monitoring interface on a construction site
JET OPTO iAVM Around View Monitoring System iAVM01

JET Optoelectronics Co., Ltd.

iAVM01✓ 101 Verified

JET OPTO iAVM Around View Monitoring System iAVM01

Contact for Quote
MOQ
Confirmed at quotation
Lead time
Confirmed at quotation

iAVM provides construction vehicle operators and drivers with 360° real-time around-view monitoring, delivering a complete, blind-spot-free view of the surroundings to enhance operational safety. AI deep learning detects people, vehicles, bicycles, animals and other objects, triggering visual and acoustic alerts when they enter the work zone.

Operations are automatically recorded and uploaded via 4G/5G to a remote server for storage. Supervisors can monitor live through a mobile app over Wi-Fi and download recorded footage for playback using 4G/5G.

Specifications

Main box video input4× Camera (Fakra)
Main box video output2× Display port
Main box power12V / 24V (9～36V)
Main box operating temp.-20°C～+70°C
Main box dimension197(L) × 169(W) × 50(H) mm
Camera resolutionFull HD (1920 × 1080)
Camera sensor1/2.8″
Camera fov195.9°
Camera waterproofIP67
Camera working temperature-20°C～+70°C
Recording resolutionFull HD (1920 × 1080)
Recording frame rate30 FPS
Recording formatTS / MP4
Recording encodingH.264

Vehicle fitment

Make Model Years Position
CASE CX300C
